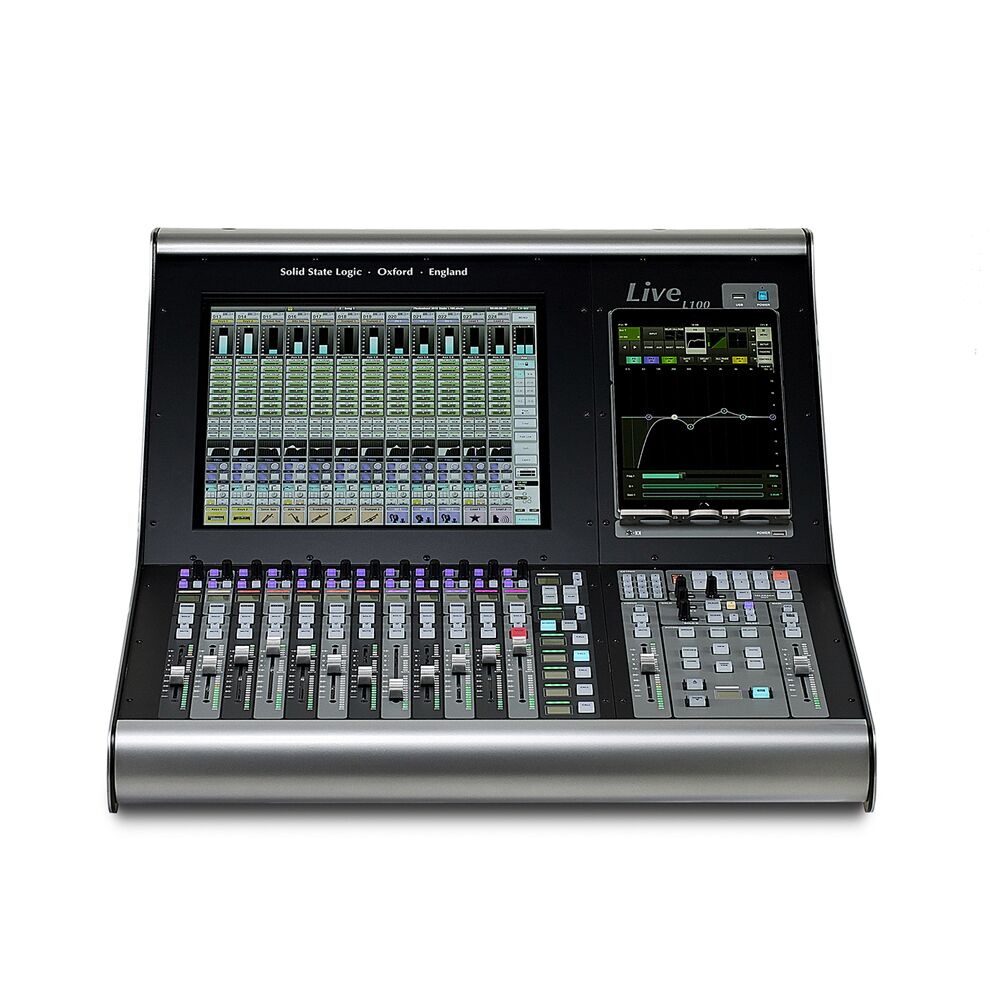

SSL L100 Plus

The L100 Plus features SSL‘s next-generation of Optimal Core Processing (OCP) technology, offering greater DSPresource forallocation and extremely flexible I/O architecture. The console has up to 472 inputs and 472 outputs. It has 128 mix paths at 96 kHz. These paths can be assigned as Channels, Stem Groups, Auxes and Masters to suit demands and configured as anything between mono, which use a single path, to 5.1 which use six paths. SSL L100 Plus features an output matrix which has four x 32 inputs and 12 outputs. All 12 matrix output paths have High and Low Pass Filters, 4 band EQ, 2 seconds of delay and our unique All Pass Filters available. This is in addition to two inserts that can be used with both the internal Effects Rack and external processing.

L100 Plus Local I/O The Solid State Logic L100 Plus features a comprehensive collection of Input and Output connectivity with the capacity to serve small to mid-scale production applications. SSL L100 Plus provides a versatile collection of local I/O built into the control surface so can operate without the use of any Stageboxes if required and has good connectivity for local peripherals when used in a pure FOH role. SSL Live consoles feature auto-detection so identify any SSL Live I/O connected within the software routing pages. Standard MADI port configuration: four pairs of coaxial MADI ports. There is an additional FX loop – a separate optical MADI port (out/in), designed for connecting an external FX device such as a system using Waves Multirack or a VST effects host. An optional redundant pair of SSL Blacklight II fibre connectors provide 256 bi-directional channels at 96 kHz between the console and stage. An optional local Dante card provides 32×32 channels of I/O at 96 kHz over a redundant Dante connection. The Dante interface offers Sample Rate Conversion between all Dante network rates. An optional redundant pair of SSL X-Light connectors provide 256 bi-directional channels at 96 kHz between console and stage using a single cable with ruggedized connectors. There is a Wordclock connection. A redundant power supply is optional. SSL L100 Plus local analogue I/O configuration; 12 mic/line inputs in, 2 front panel Talkback mic/line XLR inputs, 12 line outputs, 2 Headphone/Monitor outputs, and a front panel 3.5mm line input. AES/EBU digital I/O configuration: 4 pairs of inputs and 4 pairs of outputs. AES/EBU I/O has a fully variable sample rate conversion.

There are six models available in the SSL Live console range; the L650, L550 Plus, L450, L350 Plus, the L200 Plus and the L100 Plus. At SSL we believe that offering a range of sizes and console specifications should not mean compromising on quality or features. All six consoles use the same Remote I/O, use identical audio conversion and internal audio engine technology. The combination and layout of Fader Tiles, Master Tile and Channel Control Tile varies but the controls available and feature set are identical. The consoles use the same software with identical architecture, routing capability, and of course audio processing tool kit. A full channel on the L550 Plus is the same as a full channel on the other consoles and they all offer exactly the same outstanding collection of insert Effects. The differences between the six models centre on physical size, layout, available channel paths & processing power, and available local I/O.
