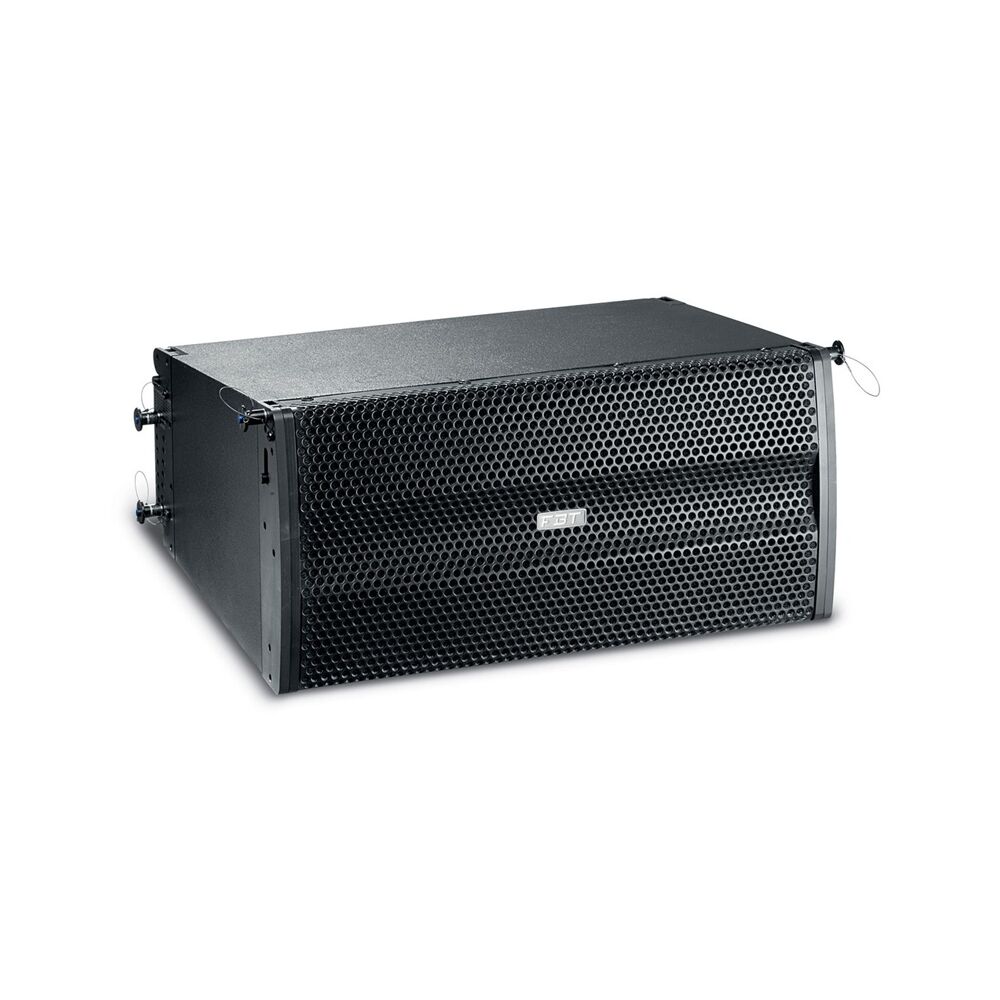

QA 108A
By
Additional information
| Brand |
|---|
PRECISION COVERAGE VERTICAL ACTIVE ARRAY
400W+100W RMS – 131dB SPL
- 1 x 200mm (8”) B&C neodymium woofer with 2’’ coil
- 150mm (6”) neodymium Pleated Diaphragm Tweeter with a cylindrical 10°V x 100°H waveguide
- Frequency response from 68Hz-23kHz
- Class D built-in Amplifier, 400W RMS to the LF and 100W RMS to the HF with a switch mode power supply
- DSP on-board with 4 configuration presets (1 – 2 – 4 – 6 to 12 box)
- Control panel features: balanced XLR-F input connector and a balanced XLR-M loop output connector to daisy chain the signal input to additional QA108A speakers,Volume, EQ Preset, HP filter, 3 status LED indicators (Power-On, Peak and Protection/Limiter)
- Neutrik Powercon IN and LINK OUT AC power connectors
- Trapezoidal shape compact enclosure with an angle of 10V°, and are constructed with 12 mm.(1/2”) Baltic birch plywood and finished with scratch and scuff resistant black paint.
- Heavy duty metal grille with cloth protect the drivers from dust and moisture. The cabinets are provided with two integrated aluminum fly hardware for suspension allowing settings in 1° steps from 0° to 10°
